- fIXES tvS up to 70" to the ceiling
- Tilt adjustment up to 15 degrees
- Telescopic pole 460-790mm from ceiling to centre of screen

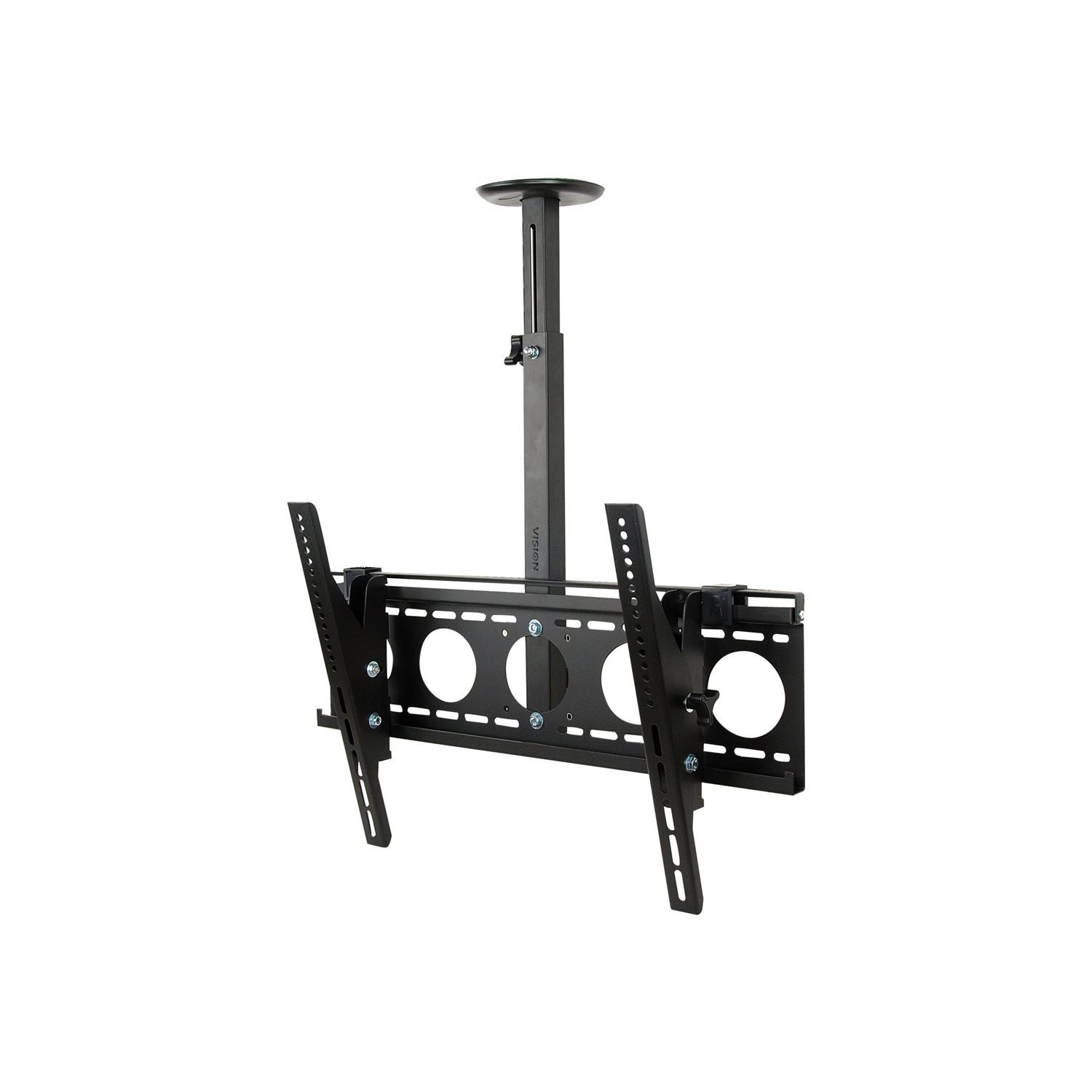

Vision’s Vision Flat-Panel Mount – Ceiling range is functional and flexible. The VFM-C6X4 features the same pole as the C2X2 but fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 wide x 400 mm tall apart.
VESA
The VESA system defines how far apart the mounting holes are on the back of the flat-panel. This mount is designed for flat panels which have holes 600 wide x 400 mm apart – known as VESA600x400. It will also fit smaller VESA sizes such as 400 x 400 mm.
SWL 35 kg
This mount has a “safe working load” of 35 kg (77 lb)- enough to support most flat panels.
Up to 70″
Fits screens up to 70″. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
Tilt
The tilt adjustment allows the display to be directed at the audience to avoid glare and optimise the viewing angle.
Retail Applications
Ideal for doctors waiting rooms, dentists ceilings, or to deliver digital signage in any retail environment.
Attractive
Vision strives to create unobtrusive and functional mounts. The C6X4 includes a cover to hide the ugly the ceiling fixtures.
