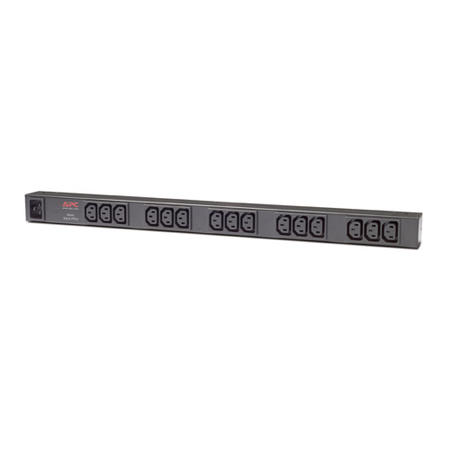

0871 244 0934APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount veritcally, without tools in the rear channel of a NetShelter VX.
|
Energy management |
|
| Input frequency | 50 - 60 Hz |
| Nominal output voltage | 120,208,230 V |
|
Environmental conditions |
|
| Operating relative humidity range | 5 - 95 % |
| Operating temperature range (T-T) | 0 - 45 °C |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature range (T-T) | -25 - 65 °C |
|
Technical details |
|
| Cable length | 2.5 m |
| Colour of product | Black |
| Input connection type | IEC-320 C20 |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Nominal input voltage | 120,208,230 V |
| Output connections | (15) IEC 320 C13 |
|
Weight & dimensions |
|
| Dimensions W x D x H | 44 x 44 x 620 mm |
| Weight | 2000 g |
