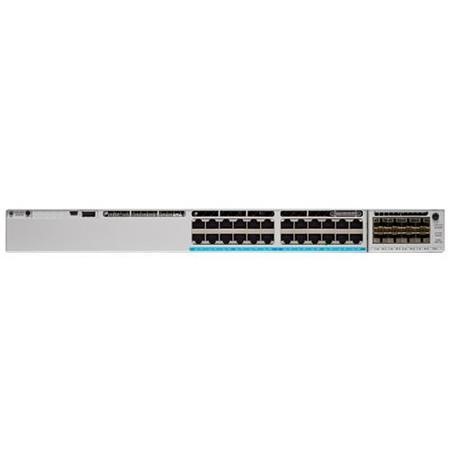

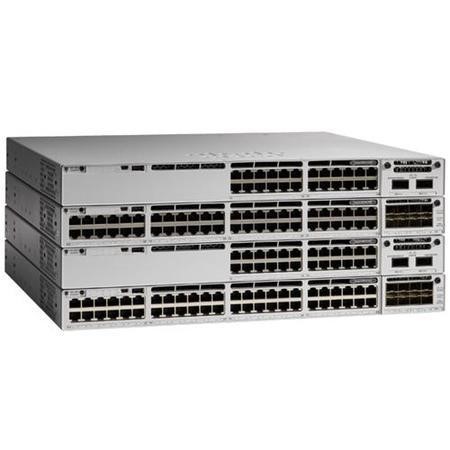

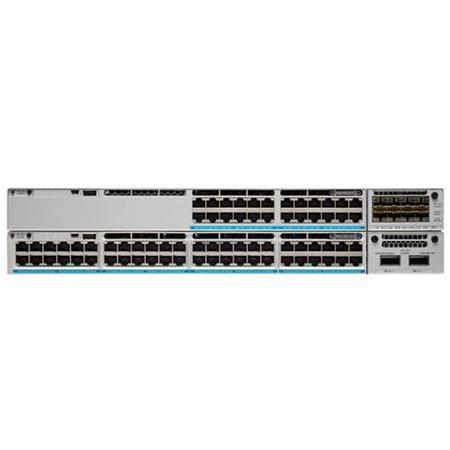

Cisco Catalyst 9300 Series switches are Cisco's stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
Key Product Info
- High wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported
- Catalyst 9300L models are based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
- x86 CPU complex with a large memory, and the flash and external USB 3.0 SSD pluggable storage slot
- USB 2.0 slot to load system images and set configurations
- Flexible and dense uplink offerings with 100G, 40G, 25G, Multigigabit, 10G, and 1G as fixed or modular uplinks
- Easy transition from 40G to 100G and 10G to 25G with dual-rate optics
- With a mix of Copper (1G up to 10G) and Fiber (1G up to 25G) supported in a single stack, multiple flexible deployment scenarios are enabled, including 2-Tier, 3-Tier and Hybrid architectures
- PoE capabilities with up to 384 ports of PoE per stack, PoE+, and 288 ports high density IEEE 802.3bt - 90W UPOE+, and 60W Cisco UPOE
- Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy. StackPower pools the power supplies across the stack to be used redundancy and supplemental power purposes
- Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows with select models
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
Product Features
- Advanced security
With 128-bit and 256-bit AES encryption, the Cisco Catalyst 9300L Mini ensures secure data transmission across the network, providing peace of mind for sensitive information handling. - High capacity and performance
Boasting a stacking bandwidth of 320 Gbps and support for up to 32,000 IPv4 routes, this switch is designed to handle heavy data loads with ease, ensuring smooth and efficient network operation. - Robust environmental adaptability
Operational in a wide range of temperatures from -5°C to 45°C and humidity levels from 5 - 90% (non-condensing), the Cisco Catalyst 9300L Mini is built to withstand challenging environmental conditions. - Comprehensive networking features
Features such as Access Control List (ACL) support, Cisco StackWise-320 technology, and Quality of Service (QoS) make this switch highly versatile for managing complex network architectures. - Efficient manageability
Remote management protocols including SNMP, NETCONF, and RESTCONF, along with Cisco's intuitive management tools, provide streamlined configuration and monitoring for optimized network performance.
