10-Port Gigabit Smart Switch with 2 SFP ports

SKU: DGS-1210-10P Quickfind Code: 659504
SAVE 26%
You save: €60.80
176.97

Why buy me

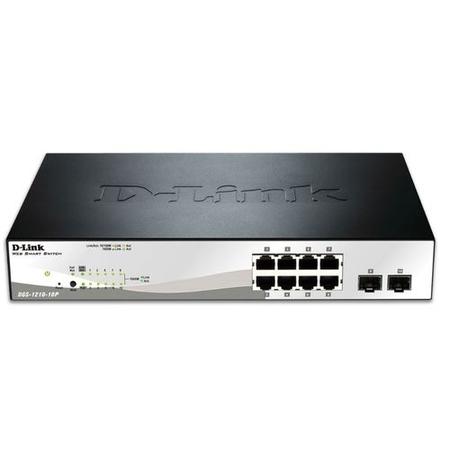

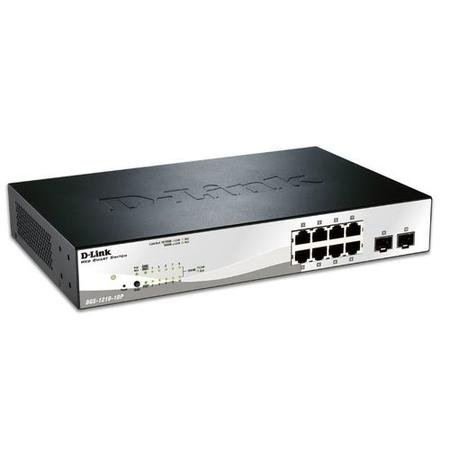

D-Link 10-port 10/100/1000 Gigabit PoE Smart Switch including 2 Combo 1000BaseT/SFP

D-Link's 10-port Third Generation Gigabit Smart PoE Switch is designed to provide small to medium businesses complete control over their network. In a 13" metal case with innovative fanless design, the switch incorporates a complete lineup of Layer 2 features, including Port Mirroring, Spanning Tree, Link Aggregation and IGMP Snooping. Network maintenance features include Loopback Detection and Cable Diagnostics. Eight of the 10 switch ports include Power over Ethernet (PoE), which gives administrators the ability to connect 802.3at pre-standard equipment such as 802.11n wireless Access Points, in parallel with standard 802.3af equipment. The PoE function is programmable, so you can cut your energy bill by switching the power off at certain times. The DGS-1210-10P features state-of-the-art security technologies including ACL filtering and 802.1X authentication. With D-Link Safeguard Engine, the switch remains available in the event of a virus outbreak. Furthermore, the DGS-1210-10P uses Auto Voice VLAN, ensuring higher priority for voice traffic. Quality of Service (QoS) and granular bandwidth control down to 64 kbps are also included. A characteristic of D-Link's web Smart Switches is their ease of use, via a simple web browser. Advanced users can also configure the switch via Telnet or SNMP package such as D-Link's D-View 6.0. D-Link's SmartConsole utility is also included for the joint management of several switches. The DGS-1210-10P is D-Link Green certified, for the energy savings that it provides without sacrificing operational performance or functionality.



Data transmission

MAC address table 8000 entries
Maximum data transfer rate 1 Gbit/s
Store-and-forward
Switching capacity 20 Gbit/s

Design

Form Factor 1U
Safety cUL, LVD

Management features

Multicast support
Quality of Service (QoS) support
Switch type 10-Port 10/100/1000 Gigabit PoE Smart Switch
Web-based management

Networking

Auto MDI/MDI-X
Flow control support
Full duplex
Link aggregation
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Port mirroring

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 10
DC-in jack
Gigabit Ethernet (copper) ports quantity 8
SFP/SFP+ slots quantity 2

Power

Power consumption (typical) 14.45 W

Power Over Ethernet (PoE)

Power over Ethernet (PoE) Support

Security

Access Control List (ACL)
MAC address filtering

Operational conditions

Heat dissipation 373.96 BTU/h
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -5 - 50 °C
Storage relative humidity (H-H) 5 - 95
Storage temperature (T-T) -20 - 70 °C

Other features

Connectivity LEDs
Connectivity Technology Wired
Dimensions (WxDxH) 330 x 180 x 44
Electromagnetic emissions FCC Class A, CE Class A, IC Class A, VCCI Class A, C-Tick

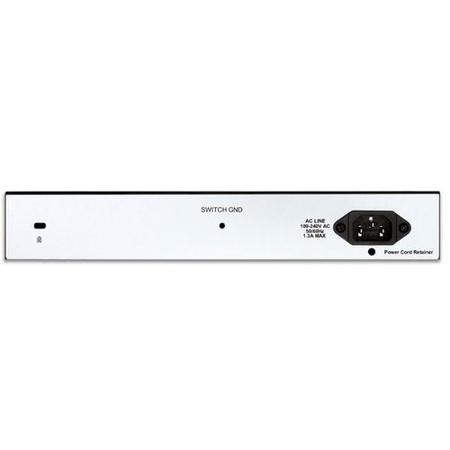

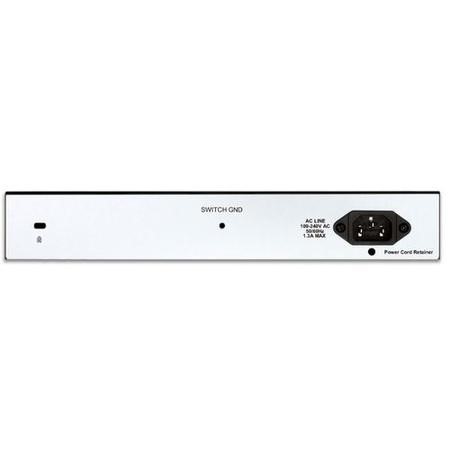

Power requirements 100 - 240 VAC, 50/60 Hz

Weight & dimensions

Weight 1840 g
