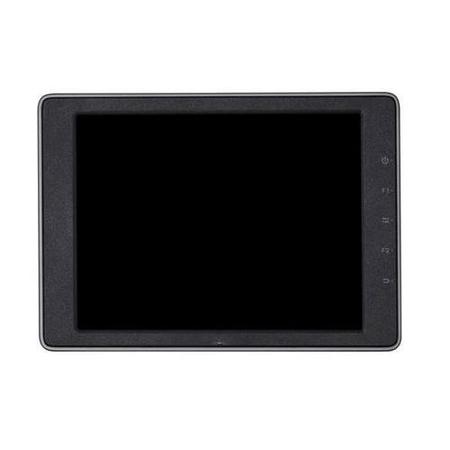

DJI CrystalSky 7.85" Ultra-Bright Monitor

Smooth Video Monitoring

The CrystalSky monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, the video decoding abilities of other smart devices might be less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, unacceptably long latency, and more. The CrystalSky monitor's optimized decoder provides smooth, real-time video feedback from compatible drones with minimal latency.

Dual microSD Card Recording

Load up microSD cards to expand the CrystalSky's storage. Video can be recorded in H.264 or H.265 formats. With the ability to play back and edit 4K recorded video inside the CrystalSky, you can quickly share high-quality edited footage. Video can also be played back through the onboard HDMI output.

I/O and Network Connectivity

The CrystalSky monitor's HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB Type-A port.

When connected to the Internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization, and more. File sizes are optimized as much as possible to minimize mobile data demands.

Onboard micro-USB and USB Type-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.

Overview

ULTRA-BRIGHT

A maximum 2000 cd/m² of brightness means the CrystalSky monitor is more than four times as bright as typical mobile devices. On-screen details are clear and sharp, and colors are vibrant, giving the quality needed to fine tune image composition. A dedicated Sunlight Readability Enhancement mode is especially designed for processing the image in real-time to ensure more comfortable viewing under bright light. * 5.5"/7.85" 1000 cd/m²; 7.85" Ultra Bright 2000 cd/m² Resolution: 2048x1536 (7.85") / 1920x1080 (5.5")

SMOOTHER VIDEO DISPLAY

The CrystalSky monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky monitor's optimized decoder provides smooth, real-time video with minimal latency.

CUSTOMIZED SYSTEM AND DJI GO/DJI GO 4

A newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. Its embedded DJI GO/DJI GO 4 app provides full access to all DJI GO/DJI GO 4 features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach.

POWER SUPPLY

A two cell 4920 mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports quick charge, and controls its discharge rate well even in low temperatures. Used with the 7.85" and 5.5" screens, it can achieve a maximum operation time of 4-5 hours and 5-6 hours respectively.

DUAL SD CARD SLOTS

Equipped with dual Micro SD Card slots, the CrystalSky monitor's storage can be extended, or footage recorded on a Micro SD Card can be played back directly on the monitor. It can also be used for footage backups. Using editors built in DJI GO/DJI GO 4, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30 fps and 60 fps respectively. These videos can also be output through its HDMI port.

PORTS AND NETWORK

The CrystalSky monitor's HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB-A port. When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization and more. File sizes are optimized as much as possible to minimize mobile data demands. Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.

EXTREME TEMPERATURE OPTIMIZED

Most smart devices are designed to operate in common temperature ranges. The CrystalSky monitor's external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).

DJI AERIAL SYSTEM COMPATIBILITY

The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, depending on your specific product.* Also, CrystalSky easily attaches to the Cendence remote controller without an additional mounting bracket.

Key Features

• Ultra bright screen clearly visible in sunlight
• Works seamlessly with the DJI GO/DJI GO 4 app
• The CrystalSky monitor uses optimized video decoding to decode video in real time
• Equiped with dual Micro SD card slots
• The battery works for up to 5 hours and operates in tempertures of -20°C to 40°C

Whats in the box?

CrystalSky Monitor ×1
Intelligent Battery ×2
Intelligent Battery Charging Hub ×1

Compatibility

Mavic Pro
Phantom 4 Series
Phantom 3 Series
Inspire Series
Osmo
Osmo+
Osmo Pro
Osmo RAW
Osmo Pro/RAW - Wired Video Adapter
CrystalSky - Osmo Pro/RAW Mounting Bracket
Cendence Remote Controller
CrystalSky - Remote Controller Mounting Bracket
CrystalSky Mavic/Spark Remote Controller Mounting Bracket

Compatible Battery Chargers:
Inspire 2 Battery Charger (IN2C180)
Inspire 2 Battery Charger (ADE018)
Inspire 2 Car Charger (C6S90-2)
Inspire 1 100W Battery Charger (A14-100P1A)
Inspire 1 180W Battery Charger (ADE018)
Inspire 1 Car Charger (C6S90)
Phantom 4 Series Battery Charger (PH4C100)
Phantom 4 Series 160W Battery Charger (PH4C160)
Phantom 4 Car Charger (C6S90)
Phantom 3 Professional Battery Charger (ADE019)
Phantom 3 Car Charger (C4S90)
*Phantom 3 57W Battery Charger (A14-057N1A)
*Osmo 57W Battery Charger (A14-057N1A)
*The 57W battery charger does not supply enough power to charge batteries and other devices connected to the USB port simultaneously. DO NOT use the USB port to charge another device when charging batteries.
