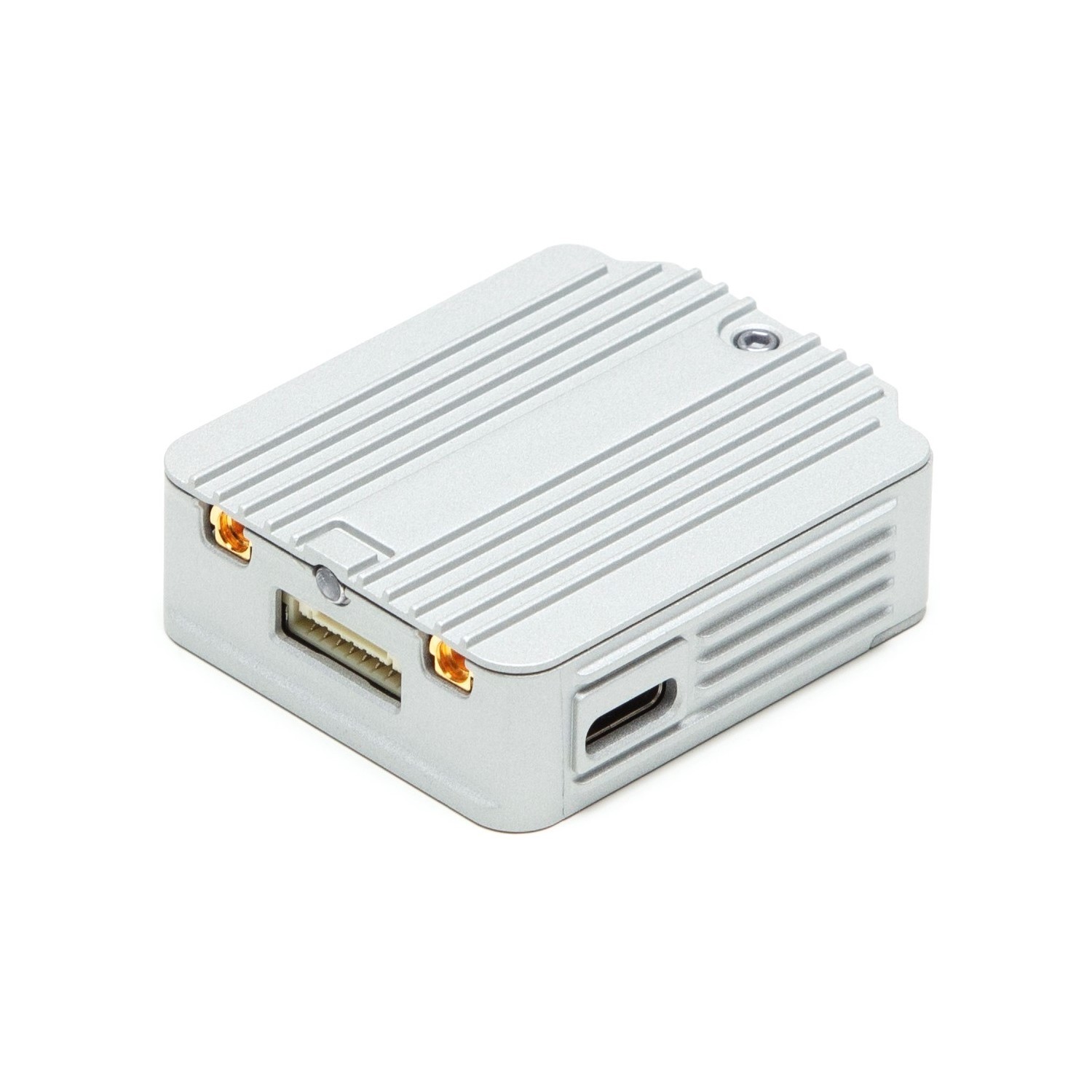

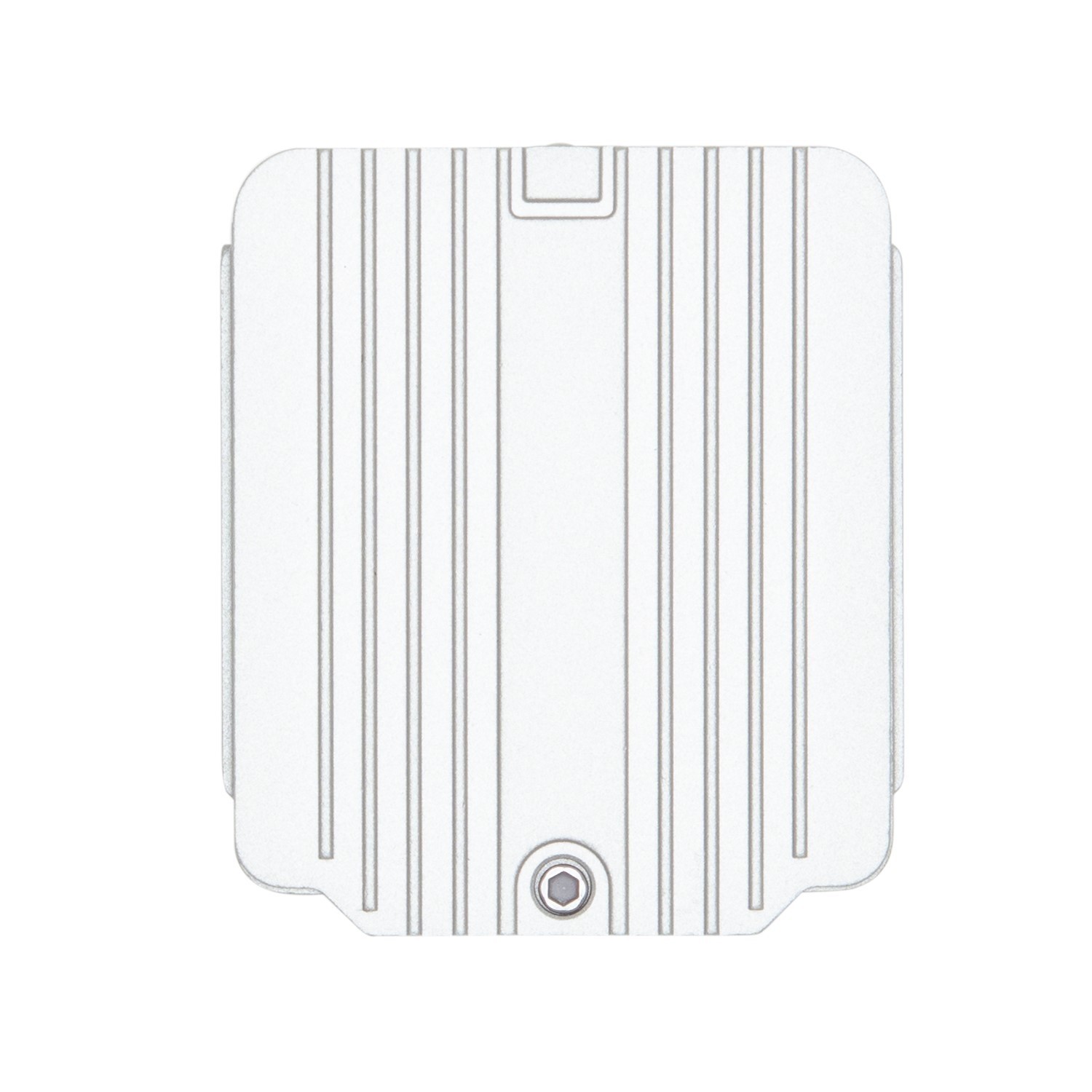

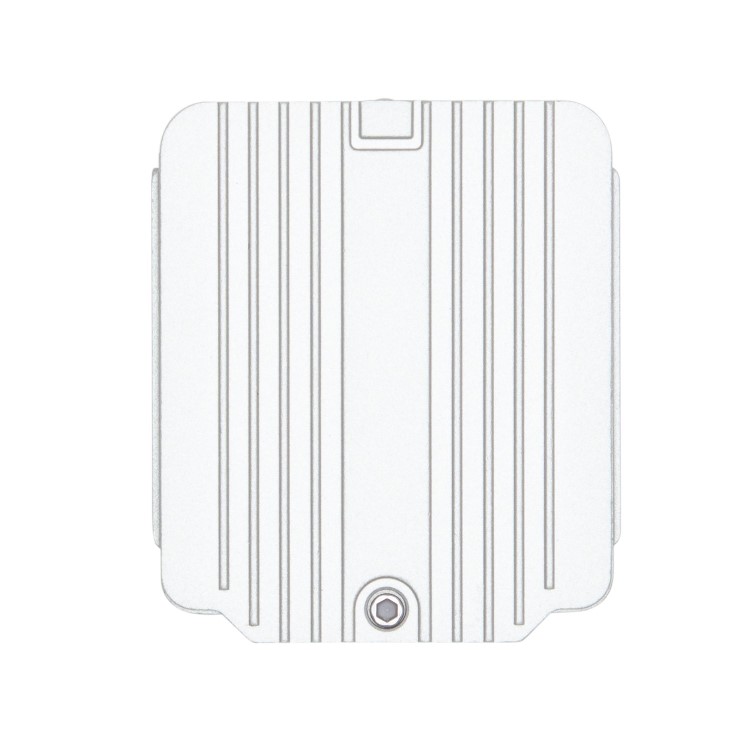

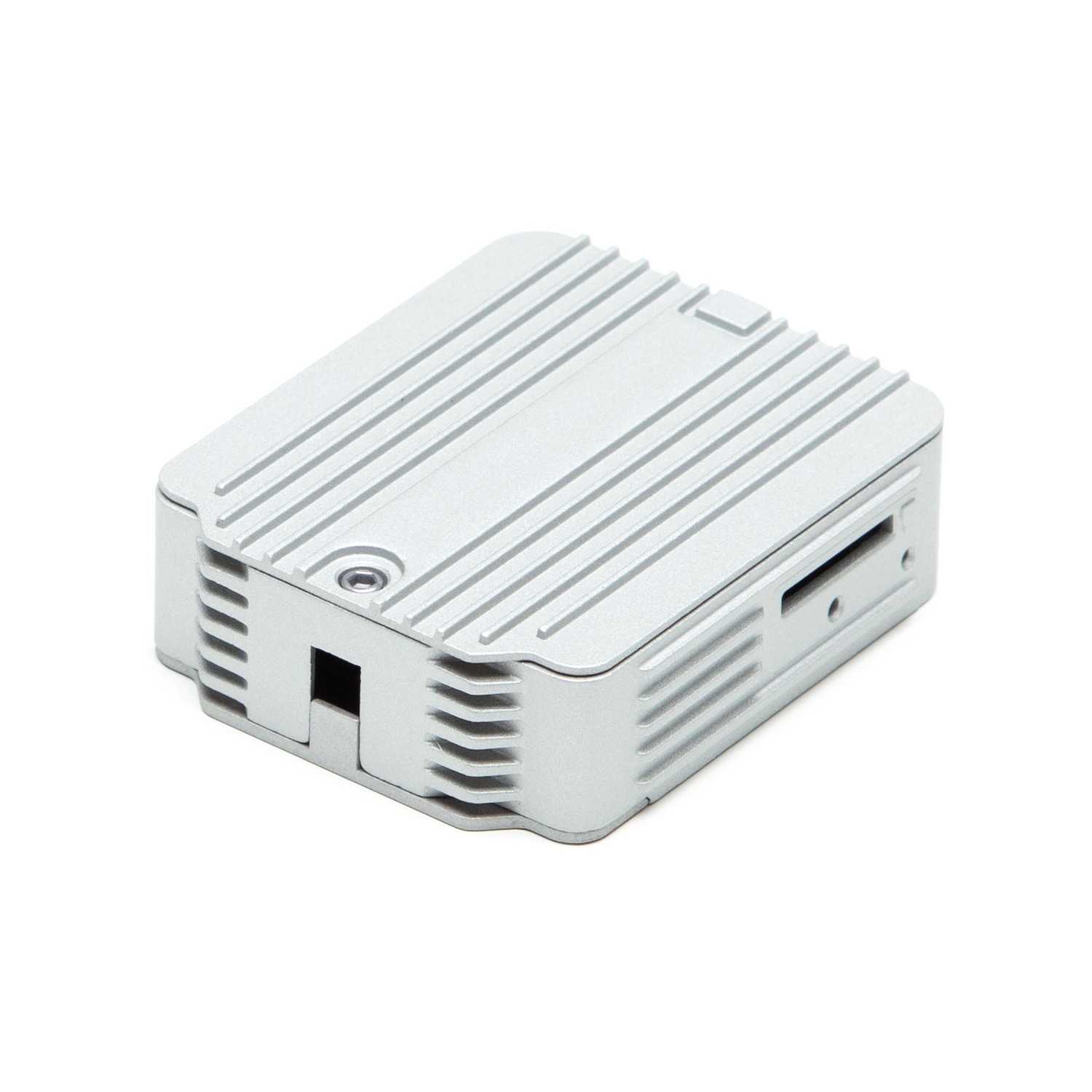

DJI FPV Air Unit Module CP.TR.00000011.02

Quickfind: 1428775 SKU: CP.TR.00000011.02

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 244 0934, we can email you if it comes back into stock »

Similar products

Other customers search for...

Product Information

A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously.

What's in the box?

  • 1 x DJI FPV Air Unit Module

Specifications

Dimensions

  • Air Unit: 44 × 37.8 × 14.4 mm
  • Operating Frequency: 5.725-5.850 GHz
  • Transmitter Power (EIRP): FCC/SRRC:
  • Min. Latency (end-to-end)
  • Low Latency Mode (720p/120fps):<28ms
  • High-Quality Mode (720p/60fps):<40ms
  • Max. Transmission Distance: FCC/SRRC:<4km; CE:<0.7km
  • Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
  • I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Input Power: 7.4-17.6 V, about 4-9 W

Channels Info

  • CE/SRRC
  • Channel 1: 5735
  • Channel 2: 5770
  • Channel 3: 5805
  • Channel 8: 5839

MIC

  • Channel 1: 5660
  • Channel 2: 5700
  • Channel 8: 5745
