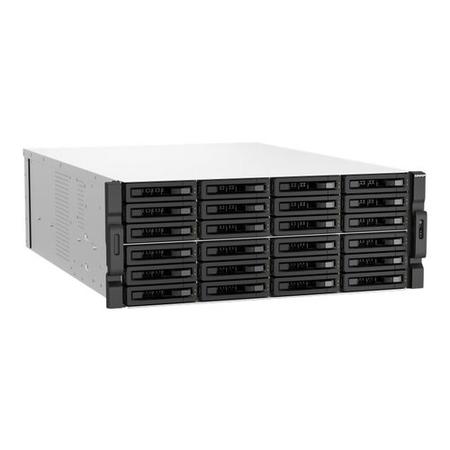

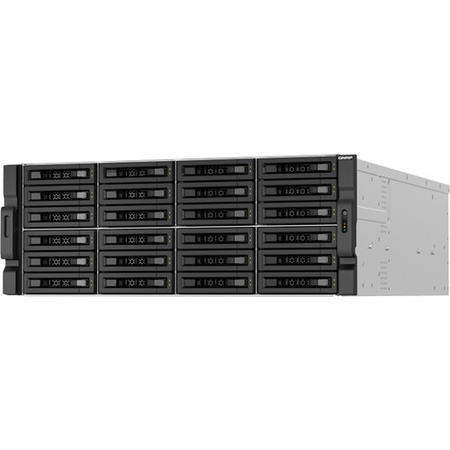

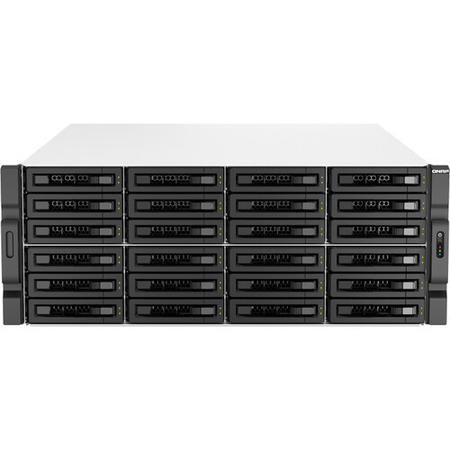

The high-capacity TS-h3087XU-RP 30-Bay NAS Enclosure from QNAP is powered by a next-gen 2.6 GHz Intel Xeon E-2378 8-Core processor and 64GB of DDR4 ECC memory (supports up to 128GB), and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h3087XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling), providing an ideal storage solution that meets today's business requirements for file servers, virtualization servers, VDI, and backup/restore.

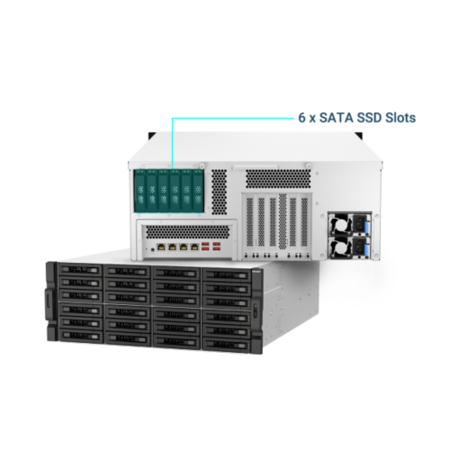

This unit has 30 SATA III 6 Gb/s drive bays, 24 of which natively support 3.5" hard drives, as well as 2.5" hard drives and SSDs, while the other six support 2.5" hard drives and SSDs. Should users need to expand the overall capacity of their TS-h3087XU-RP, optional expansion units may be connected. When using six 25GbE ports, the TS-h3087XU-RP can deliver sequential reads of up to 10,273 MB/s and sequential writes of up to 10,132 MB/s.

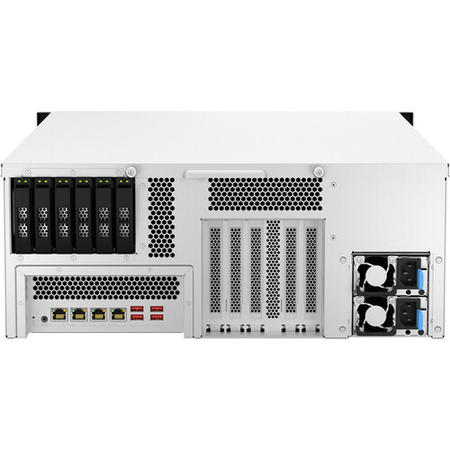

Also featured are four USB-A 3.2 Gen 2 Type-A ports, which allow it to be connected to external peripherals. Network connectivity is achieved via the two 10 Gigabit Ethernet or two 2.5 Gigabit Ethernet ports with port trunking failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. If you're looking to expand this NAS, there are three PCIe Gen 4.0 slots that support 10/25GbE network cards, QM2 cards for SSD caching, SATA storage expansion cards, and graphics cards.
The TS-h3087XU-RP runs on the QuTS hero 5.0.0 operating system, which combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance. Supported RAID modes include RAID 0, 1, 5, 6, 10, 50, 60, Triple Mirror, and Triple Parity. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
