TP-Link 8 Port Desktop Gigabit Switch

TP-Link 8 port Desktop Gigabit Switch

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So£¬power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

• Power down Idle Ports - When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.
• Power Budget According to Cable Length - Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.


Features and Specification of the TP-Link 8 port Desktop Gigabit Switch

• Innovative energy-efficient technology saves power up to 80%
  Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 16Gbps Switching Capacity
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Desktop or wall-mounting design
• Plug and Play design simplifies installation
• Interface:

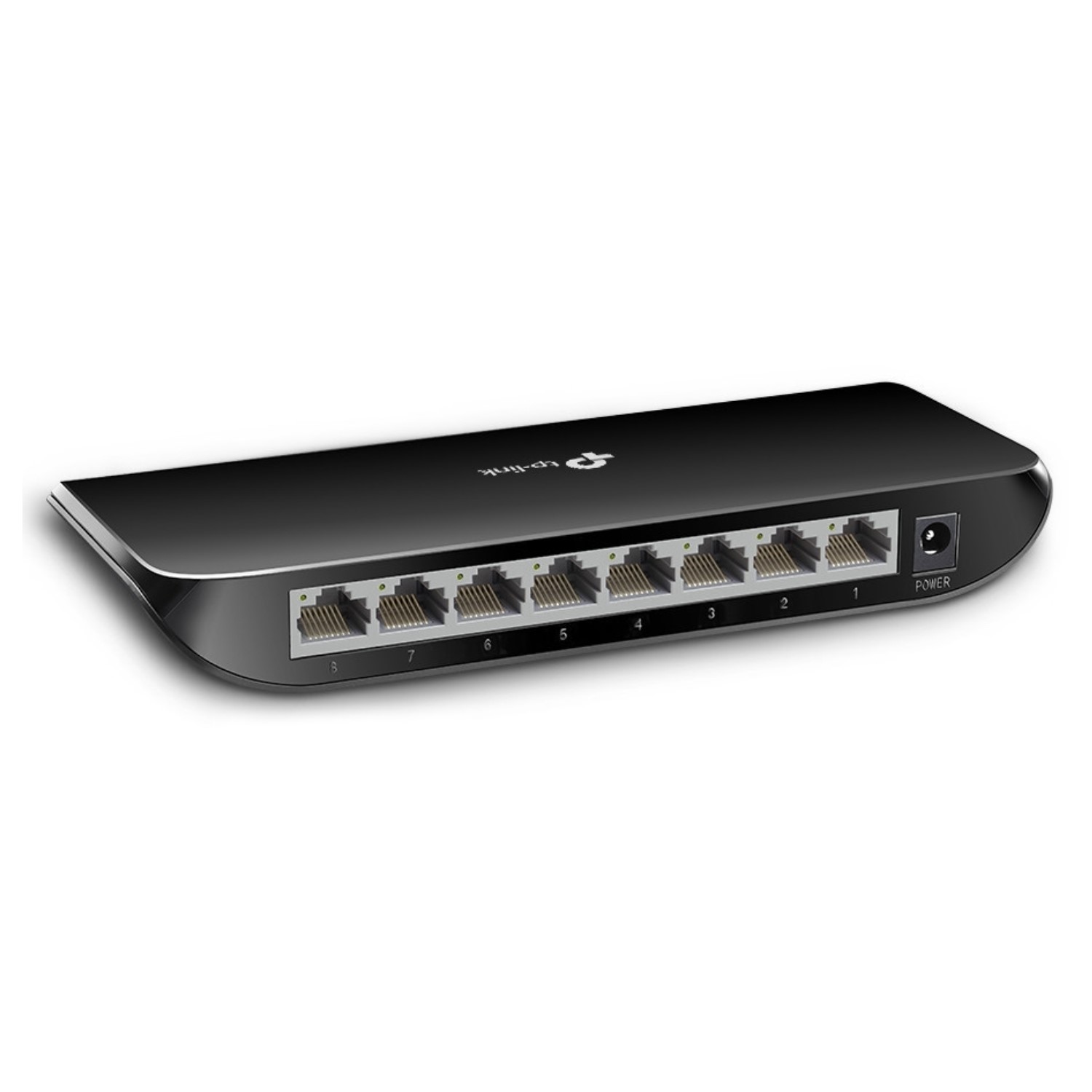

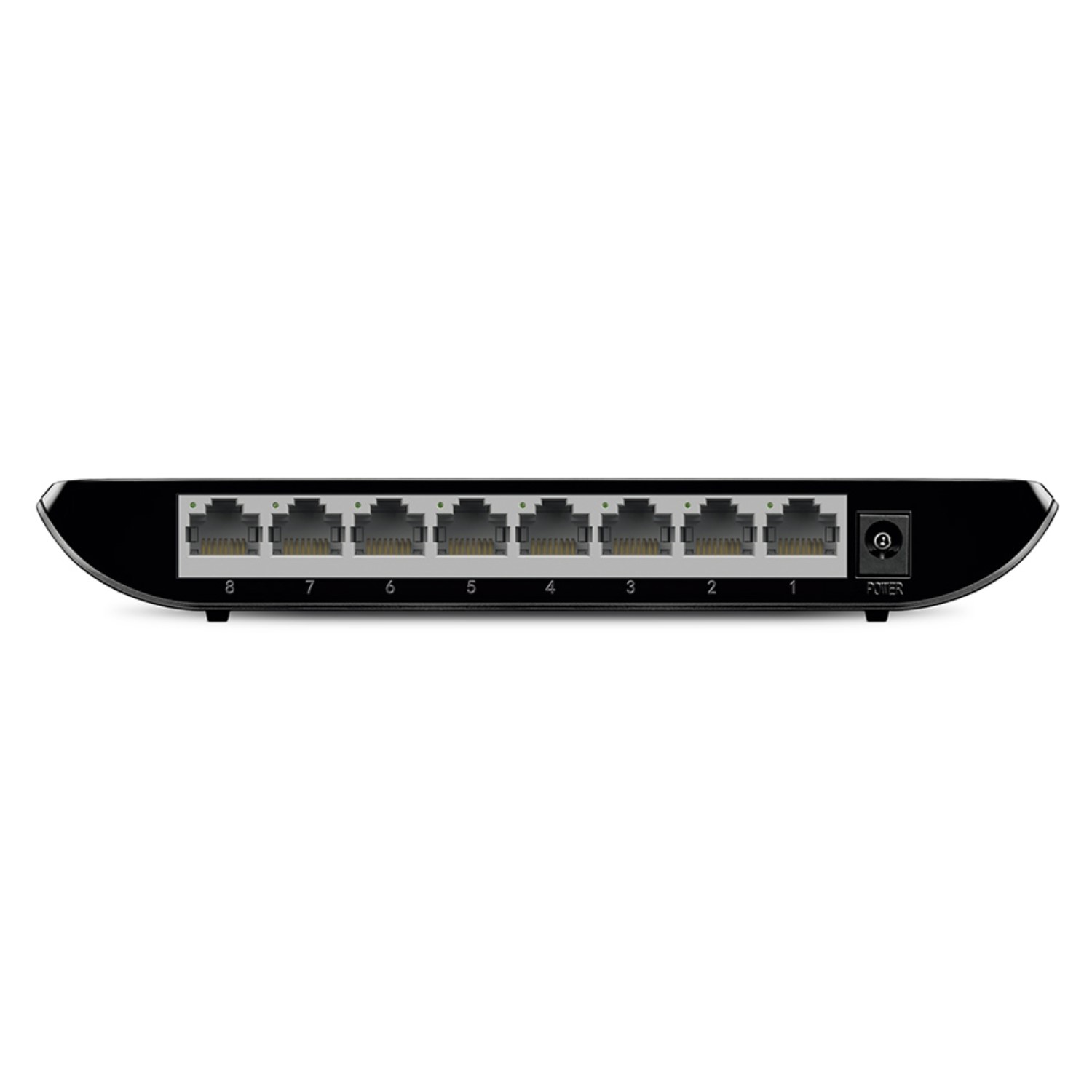

  8 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• External Power Supply: 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ): 6.5 x 4.3 x 1.1 in. (165mm x 108mm x 28mm)
• Transfer Method: Store and Forward
• MAC Address Table: 8K
• Advanced Functions:
  Green Technology, saving power up to 80%
  802.3X Flow Control, Back Pressure
  Auto-Uplink Every Port
• Certification: FCC, CE, RoHs
  Package Contents:

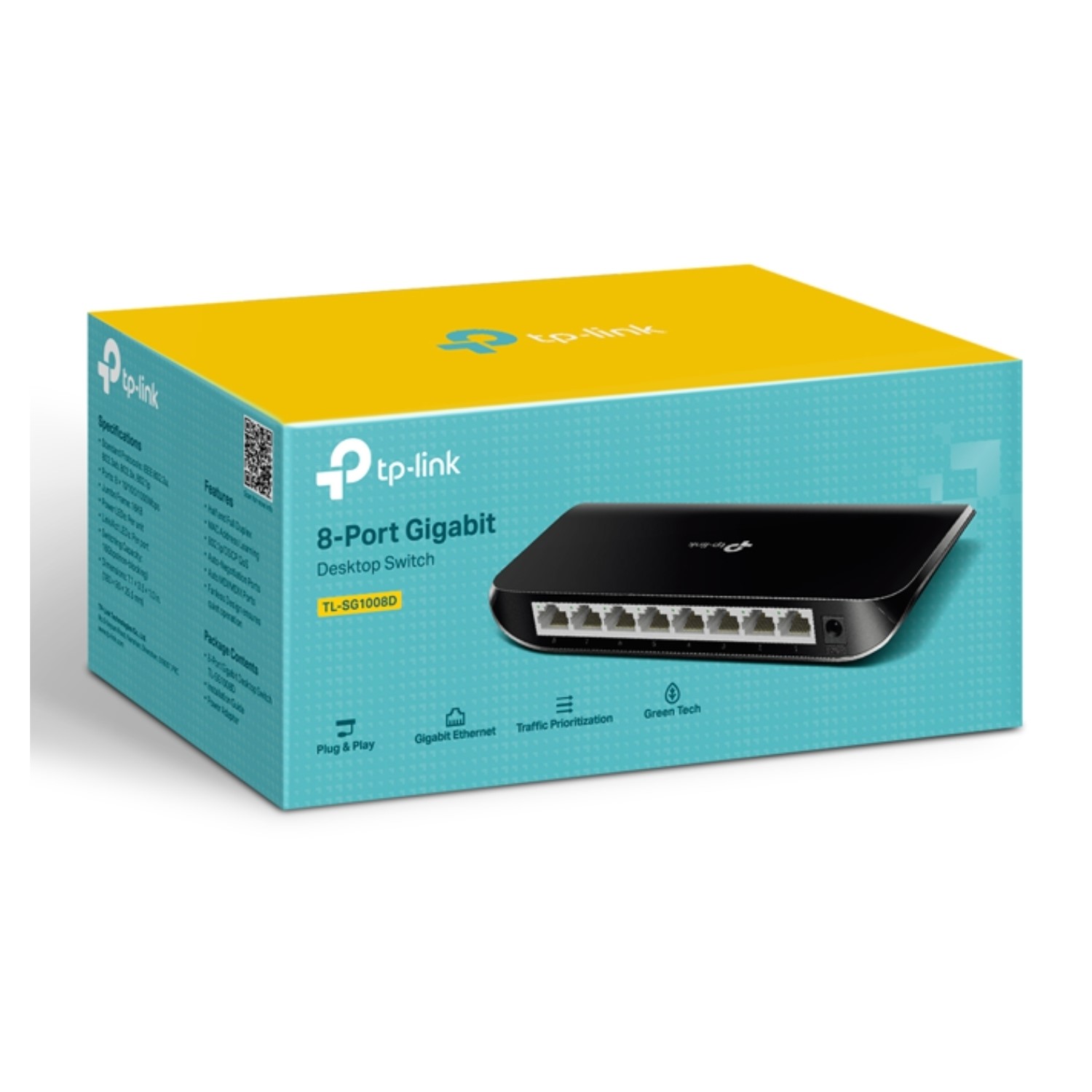

  8-Port Gigabit Desktop Switch
  Power Adapter
  User Guide
• System Requirements:
  Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7
  MAC® OS, NetWare®, UNIX® or Linux.
• Environment:
  Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.
