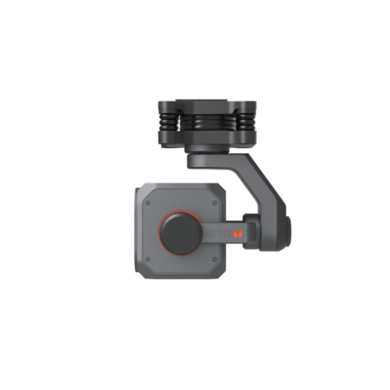

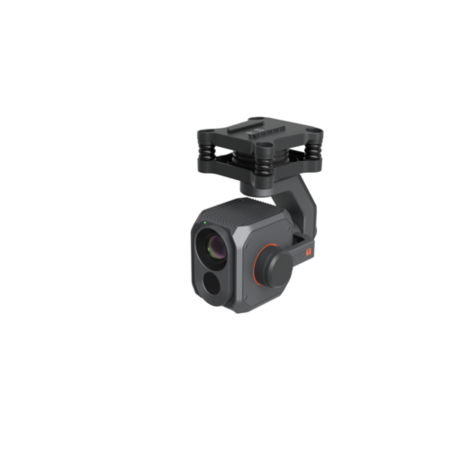

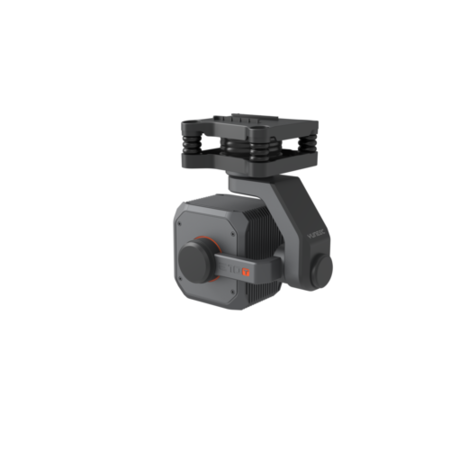

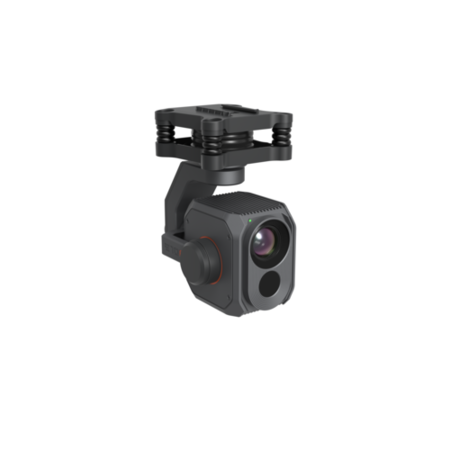

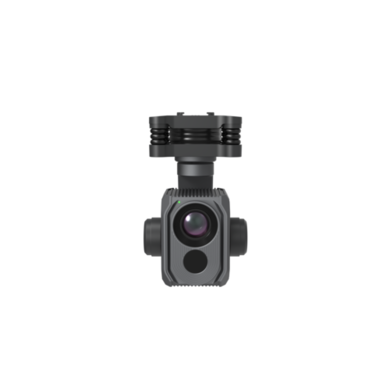

Yuneec E10T 320x256 24° FOV Thermal Camera for H520

E10T thermal imaging camera for H520 Hexacopter

Thermal imaging and low-light camera

High-resolution dual camera

The E10T for the H520 Hexacopter is a stabilised 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E10T takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream, you can stream the thermal and residual light image simultaneously to the remote control and then look at the image as an overlay or picture-in-picture. Furthermore, the E10T supports commercial applications such as mission planning.

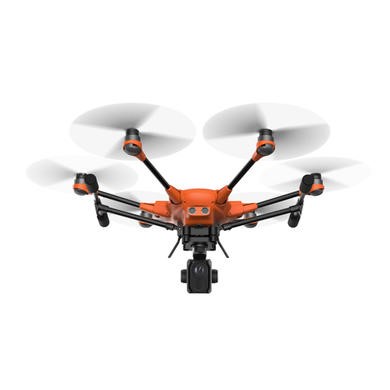

E10T with H520 Hexacopter

The H520 Hexacopter was specially developed for inspection, safety, and search & rescue applications. With its multi-sensor compatibility, the H520 Hexacopter offers emergency services, firefighters, police and inspectors reliable and efficient air support in combination with the E10T thermal imaging and residual light camera.

Thermal imaging applications

When searching for people, the drone enables you to look for people very quickly from the air with the E10T thermal imaging camera. In case of fires, fire hot spots can be detected and allows fast and efficient countermeasure against the fire, which can save lives.

3-Axis gimbal with 360° rotation

The E10T camera/gimbal combination is stabilised via 3 axes and thereby provides a still image for inspection and stable pictures. Furthermore, the gimbal can be rotated 360° and provides a full panoramic view with the retractable landing skid.

Interchangeable camera systems

The E10T can be 'hot-swapped' and can be exchanged with any other camera/gimbal combination compatible with the H520 such as the E90 1" sensor camera or the E50 inspection camera . The copter does not have to be restarted when changing the camera systems and prevents any forced breaks, which means that you can always work productively and effectively.

Everything at a glance

• Thermal imaging and residual light camera
• 320x256 or 640x512 thermal resolution
• Dual video stream
• Compatible with the H520 Hexacopter
• Up to 28 minutes flight time with the H520
• Hot-swap gimbal
• Continuous 360° gimbal rotation
• Full camera control via the ST16S
• Supports DataPilot and mission planning
