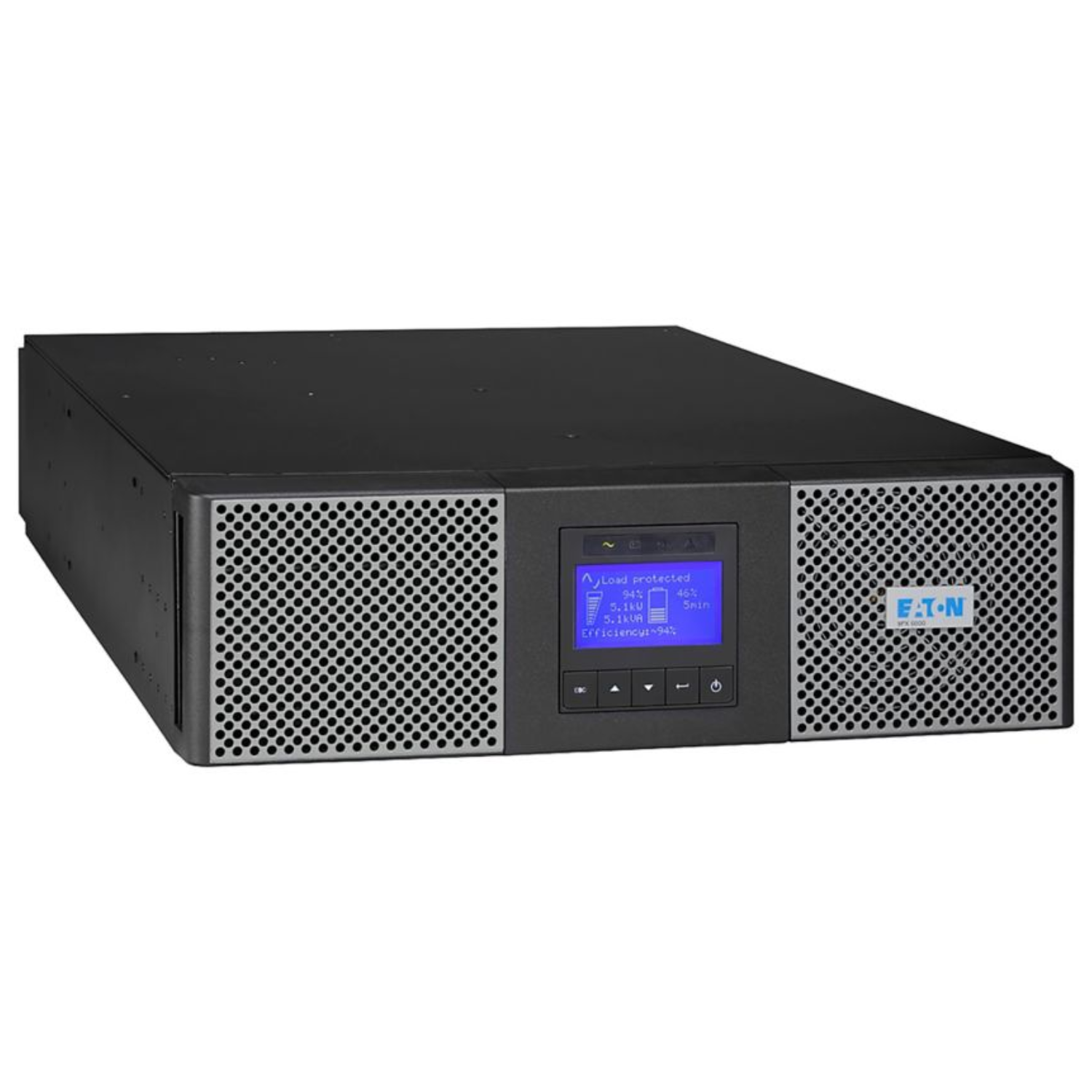

Eaton 9PX 5000i RT3U Netpack

The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Key Product Info

• On-line double conversion topology, with automatic by-pass and PFC system
• Energy efficient UPS with up to 94% efficiency in Online mode and 98% in Hi-efficiency Mode
• Unmatched power density with 4500W in 3U
• Compatibility with power factor corrected power supplies (ratio W/VA=0.9)
• Parallel operation up to 2 UPSs (redundancy or power extension)
• Hot swappable batteries from front panel
• Easy to operate : next-generation multilingual LCD display
• Remote reboot and runtime optimization thanks to 8 programmable outlets (2 x 4 oulet groups)
• Energy metering accessible through LCD and Software
• Ships with Network interface (SNMP+Web) : Network Management Card
• Monitoring & shutdown software for VMware, Hyper-V, Citrix Xen, Windows, Linux, SUN Solaris, HP-UX, IBM AIX
• 1 USB port + 1 Serial + 4 dry contacts (DB9)
• All necessary hardware for rack-mounting included : 19’ brackets + universal rails + hardware kit
• Advance Battery Management (ABM) technology to increase battery lifetime
• Long backup time with up to 12 optional EBM cabinets
• Connectors for Remote power off or remote OFF/ON function

Product Features

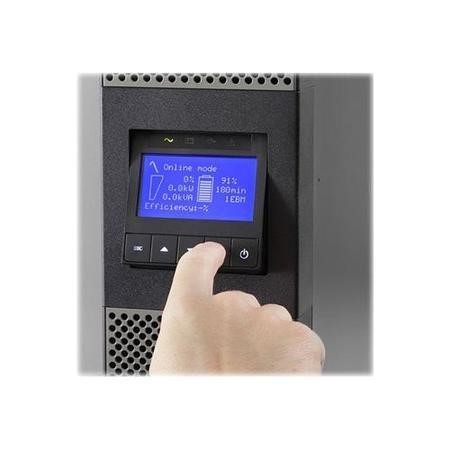

• Graphical LCD display

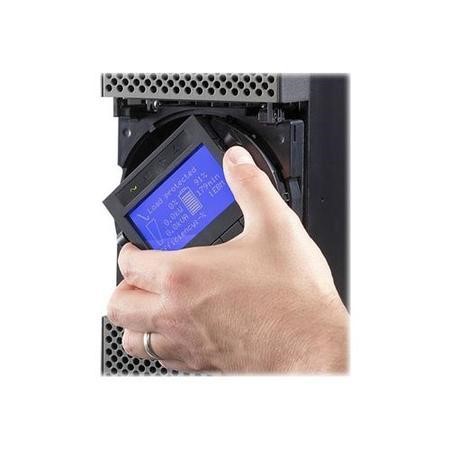

  It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing.
• Availability and flexibility
  The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems.
• Paralleling functionality
  Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology!
• Load segment control
  It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.

What's in the box?

• UPS
• 2 IEC-IEC output cables
• Network Management Card
• USB cable
• Serial cable
• 2 Supports for tower mounting
• 2 brackets for 19' mounting
• 2 Rack-mounting kit
• Cable locking system
• Safety instructions
• Quickstart guide
