QNAP TS-262
Model: TS-262-4G/8TB-IW
Description: QNAP TS-262-4G 8TB (2 x 4TB Seagate IronWolf) 2 Bay Desktop NAS
Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability
A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-262 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-262 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI™ 2.1 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-262 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-262 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.
2.5GbE port
Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.
HDMI™ port
4K media playback and real-time transcoding; directly watch videos using HDMI™ 2.1 (4K @60Hz) output.
AI-powered image recognition
Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.
Dual M.2 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).
PCIe slot
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-262, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.
Expand storage capacity
Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).
Upgrade your home network to 2.5GbE
Wi-Fi 6 and 5G are becoming the new normal for networking, and there’s no reason why your home wired network shouldn’t also get a boost. The TS-262 comes with single 2.5GbE RJ45 LAN port which supports existing CAT5e cables. If your computers don’t have 2.5GbE ports, you can use QNAP’s USB 3.2 Gen 1 to 5GbE adapter (model name QNA-UC5G1T) to take advantage of the huge speed increase that 2.5GbE provides over standard Gigabit Ethernet. QNAP also provide affordable 2.5GbE switches and other adapters for you to take full advantage of the TS-262’s 2.5GbE connectivity.
Intel dual-core processor burst up to 2.9 GHz
The TS-262 is powered by an Intel® Celeron® N4505 dual-core processor (burst up to 2.9 GHz), and supports SATA 6 Gb/s drives. The Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install NVMe SSDs in the M.2 PCIe slots for cache acceleration to maximize network and storage performance for data-intensive applications or enable Qtier for auto-tiered storage for higher storage efficiency.
Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
The TS-262 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
The TS-262 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs1 with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-262 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.
Accelerate AI–powered image recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-262 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
SSD caching and auto-tiering enable 24/7 optimized storage efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-262 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.
SSD over-provisioning (Over-provisioning)
You can add additional SSD over-provisioning (1% ~60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs!
SSD cache acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. The TS-262 also supports write-only cache to boost write-intensive applications.
Qtier for auto-tiering
Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.
Direct 4K HDMI™ output for multimedia
The TS-262 supports hardware decoding and real-time transcoding*. The HDMI™ 2.1 output supports up to 4K (3840 x 2160p) @60Hz, allowing you to directly enjoy high-res videos on a TV or monitor. ***The TS-262’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth. H.265 hardware transcoding requires installing CAYIN MediaSign Player with Plus license.
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-262 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
The best storage for your high-resolution multimedia files
High-resolution RAW files eat up phone storage so quickly. Whether you are a photographer enthusiastic, YouTuber, or professional photo/video editors, use the TS-262 with high-capacity hard drives to alleviate your storage anxiety and organize files efficiently as the best storage center.
RAID protection
RAID redundancy protects data against hard drive failure. By dedicating some drives to redundancy, if a drive fails you can simply replace it with a new drive and avoid data loss.
Storage for massive photos
The AI-powered QuMagie with intelligent face and object recognition brings you the ultimate photo management and sharing solution. Includes timeline scrolling, customizable folder covers, iOS® Live Photo display, a powerful search tool, and more.
10x faster image recognition with Edge TPU1
Affordably leverage the Edge TPU to empower QuMagie for quickly processing thousands of photos with high-speed AI Image recognition and classification.
Storage for music collections
Use Music Station to collect and play lossless music, sing along with lyrics, and share albums, playlists or folders with friends and family. You can also put tons of music right in your pocket using the Qmusic mobile app.
Store high-resolution videos
Centrally collect GoPro diaries, videos of your family, friends, and pets in Video Station, and easily share your favorites. Take all your videos with you on your mobile devices using the Qvideo mobile app.
Stream all your media to every device in the house
The TS-262 is a complete multimedia center, allowing fast and easy streaming for photos, music and video to TVs, computers and mobile devices.
Plex multimedia streaming
By installing Plex® Media Server from the App Center, you can stream media files stored on the TS-262 to mobiles and media streaming devices (including DLNA®, Roku®, Amazon Fire TV® and Google Chromecast™).
Stream to Android TV™ or Apple TV®
Qmedia is QNAP’s exclusive streaming app, allowing streaming audio, photos, and videos from the TS-262 to Android TV™, Apple TV® (via Qmedia) or set-top boxes.
Connect to a TV or Monitor with HDMI™
With HDMI™ output, the TS-262 allows you to directly enjoy multimedia content, use web browsers, manage your NAS, or watch recorded surveillance footage or live feeds on your NAS.
HybridDesk Station
Your TS-262 not only provides storage for your multimedia, but it can also be used as a Home Theater PC! Connect the TS-262 to an TV or A/V Receiver with HDMI™ , install HybridDesk Station, and easily watch movies or play music using the QNAP remote control (sold separately) or the Qremote mobile app
Use your NAS as a PC
Simply connect a keyboard, mouse, and HDMI™ display to the TS-262 to use it as a PC - directly accessing your NAS files and services, and browsing the Internet with Google Chrome™ and Firefox® are just that easy.
Monitor surveillance videos
Use the QVR Pro Client on HybridDesk Station to monitor live views and play recorded footage. You can also switch between different channels to view from different angles for greater coverage
Ultimate visual experience with 4K HDMI™ output
The TS-262 has an HDMI™ 2.0 port which supports 4K (3840 x 2160) 60Hz output.
An easy-to-use, all-in-one backup solution
The TS-262 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.
Back up Windows®/Mac® files
For Windows®, install NetBak Replicator to back up your PC files to the TS-262, or use NetBak PC Agent for full system backup. In macOS®, simply set up the built-in Time Machine® to back up files to NAS.
Back up photos on mobile devices
Install Qfile or QuMagie mobile app and enable the “auto-upload” function. Photos will be automatically uploaded to your TS-262 as soon as they are taken
Back up Google Drive™
Hybrid Backup Sync can safely back up files and data from Google Drive™ to the TS-262, helping you save money on cloud storage costs.
Back up NAS files to the cloud
Hybrid Backup Sync supports QNAP-hosted myQNAPcloud Storage and numerous public cloud services, allowing you to effortlessly back up or sync NAS files to cloud storage.
Back up WordPress sites
Enjoy efficient WordPress backup/restore and site migration by leveraging the user-friendly Multi-Application Recovery Service (MARS), and easily batch backup WordPress files and database to the TS-262 with backup scheduling.
Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-262. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time - greatly helping in mitigating the threat of ransomware.
- Back up PCs to your NAS
- Take snapshots within seconds
- Back up snapshots
- Restore data using snapshots
Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-262’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-262 helps you save time while being more efficient and productive.
File Station
Easily manage files stored in your TS-262 using the web-based File Station. The Qfile companion mobile app also puts all your files at your fingertips, providing a complete personal cloud service that is accessible from anywhere!
Qsync
Qsync is a perfect replacement of Dropbox®, allowing you to synchronize files with computers and mobile devices belonging to your family, friends, colleagues, and clients.
Qsirch
QNAP’s powerful, Google™-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions.
Qfiling
Save time organizing and archiving your files with Qfiling. Simply categorize your files, set a schedule, and Qfiling will automatically organize and archive them.
Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-262, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-262, and will automatically connect using the best method based on your network environment.
Easily build a wallet-friendly home surveillance system!
With the subscription-based QVR Elite smart surveillance solution you only pay for the channel licenses you need, allowing you to affordably safeguard your property. You can arrange a dedicated, independent storage space for surveillance data on the TS-262 and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files for playback on nearly every device. You can also use USB webcams as network cameras with the QUSBCam2 app, and remotely monitor your surveillance feeds at any time with the QVR Pro Client companion mobile app.
Flexible and economical storage expansion
QNAP provides easy and affordable solutions to expand your NAS storage capacity.
- Attach QNAP expansion enclosures - Connect expansion enclosures to the TS-262, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
- Mount cloud storage or remote file servers - Mount cloud storage or remote file servers to expand the capacity of the TS-262 while also centrally managing files on the NAS, cloud storage, and remote devices.
- Migrate to a new NAS - Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
- Upgrade RAID capacity - Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your files and multimedia collections.
Extend hardware warranty up to 5 years
The TS-262 is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Hardware Specs:
- CPU: Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz
- CPU Architecture: 64-bit x86
- Operating System: QTS 5.1.3
- Graphic Processors: Intel® UHD Graphics
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 4 GB RAM
- Maximum Memory: 4 GB
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 2 x 3.5-inch SATA 6Gb/s
- Drive Compatibility: 3.5-inch SATA hard disk drives / 2.5-inch SATA solid state drives
- Hot-swappable: Yes

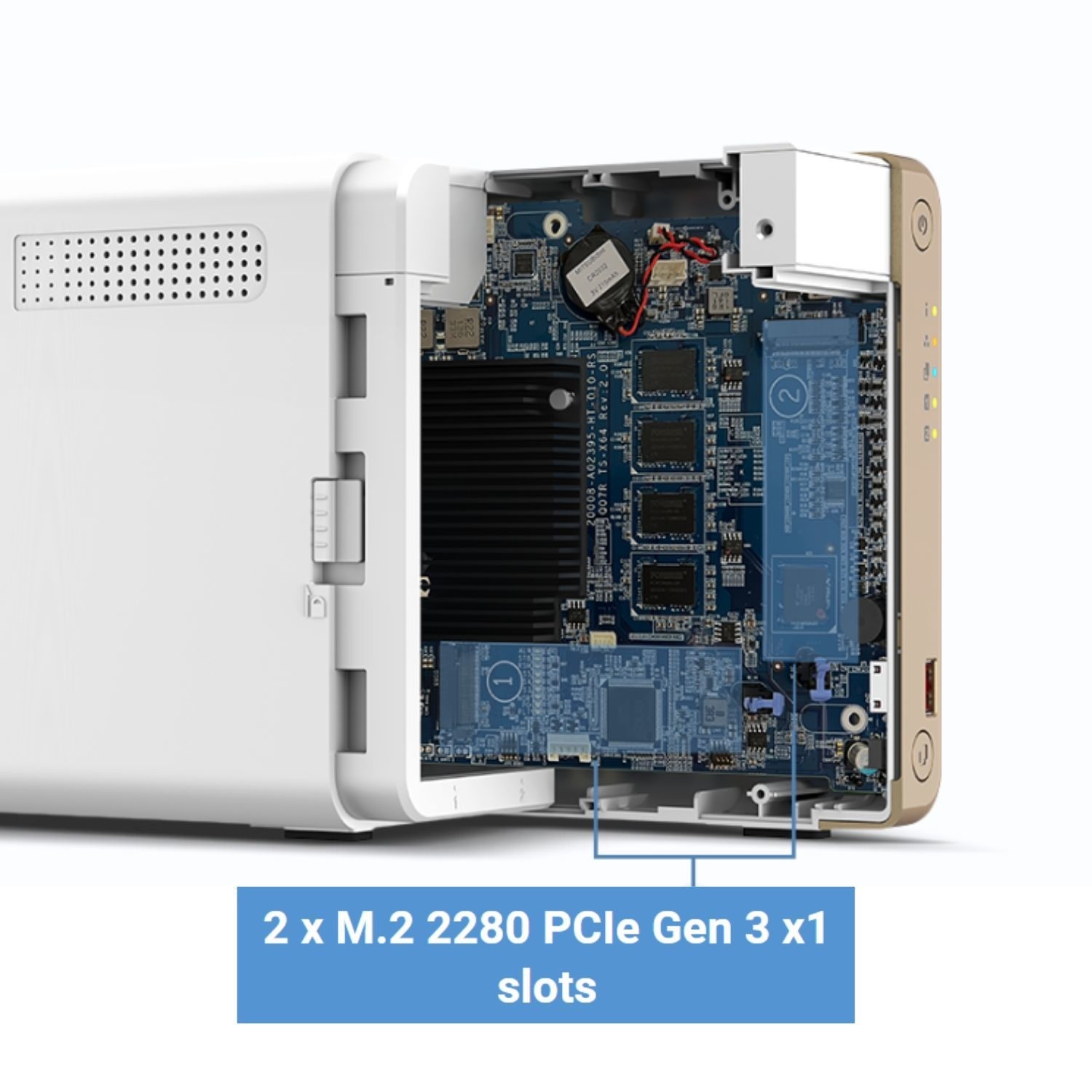

- M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1
- SSD Cache Acceleration Support: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1 (2.5G/1G/100M/10M)
- 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
- 10 Gigabit Ethernet Port: Optional via PCIe expansion card
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- PCIe Slot: 1 Slot 1: PCIe Gen 3 x2
- USB 2.0 port: 2
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
- IR Sensor: (Optional QNAP RM-IR004 remote control)
- HDMI™ Output: 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)
- Form Factor: Tower
- LED Indicators: Power/Status, LAN, USB, HDD1-2
- Buttons: Power, USB copy, Reset
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit: 60W adapter, 100-240V
- Power Consumption: HDD Sleep Mode
- Power Consumption: Operating Mode, Typical
- Fan: 1 x 70mm, 12VDC
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Standard Warranty" 2
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
Software Specs:
- Supported Client Operating Systems: Apple Mac OS 10.10 or later / Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux / IBM AIX 7, Solaris 10 or later UNIX / Microsoft Windows 7, 8, 10 and 11
- Maximum Pool size: 308TB
- Maximum number of storage pool: 128
- Volume Type: Thick, Thin, Static
- Maximum volume size: 250 TB
- Maximum number of volume: 128
- Maximum shared folder size: 250TB
- Maximum number of shared folder: 512
- LUN Type: Thick, Thin
- Maximum LUN size: 250TB
- Maximum number of targets LUN: 128
- Auto Tiering: Yes
- RAID Type: 2-bay: JBOD, Single, RAID 0, 1
- RAID Hot Spare: Global, Local
- Internal drive: EXT4
- External drive: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
- Minimum Snapshot Interval: 5 minutes
- SSD Cache RAID: 0, 1, 5, 6, 10
- Maximum FTP connection: 1024
- Local user account: 4,096
- Local group account: 512
- Domain user/group account: 200,000
- Advanced folder permission: (AFP, CIFS/SMB, FTP, and File Station)
- Windows ACL: (CIFS/SMB)
- Folder quota: (Snapshot shared folder)
- SNMP: V2, V3
- Network recycle bin: Recover files deleted using AFP, CIFS/SMB, and File Station / Automatic cleanup and file type filter
- System Log & Notification Center: Log recording: 3,000 event per second
- Internet protocol: IPv4, IPv6
- Port trunking: (7 modes)
- LUN feature: LUN Mapping (LUN can be moved between iSCSI and FC) / LUN Masking / WWPN Aliases Import/Export / FC Port Group / FC Port Binding / Multipath IO (MPIO) / Online LUN capacity expansion / LUN snapshot / LUN snapshot replication and clone
- Supported Browsers: Apple Safari (latest version) / Google Chrome (latest version) / Microsoft Edge (latest version) / Mozilla Firefox (latest version)
- Supported Languages: Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
- HTTP/HTTPS Connections: TLS 1.0/1.1/1.2/1.3
- Supports Virtual Hosts: 32
- Storage Pool / SED Storage Pool
- File-based iSCSI LUN / Block-based iSCSI LUN
- JBOD Expansion / VJBOD / VJBOD Cloud / iSCSI Service / Fibre Channel Service
- Disk, Enclosure Locate / Disk S.M.A.R.T. Scan / Disk S.M.A.R.T. Data Migration / Ironwolf Health Management / Secure Erase / SSD Trim / SSD Life Estimation / Disk Roaming / Disk Standby / Volume Snapshot / LUN Snapshot
- RAID Group / RAID Level Migration / RAID Expansion (by adding Disk) / RAID Expansion (by replacing bigger Disks) / Storage Pool Expansion (by adding RAID Group) / RAID Sync/Rebuild/Scrubbing
- Snapshot Retention Policy / Self-serve Snapshot Recovery / Application Consisted Snapshot / Snapshot Full Clone / Snapshot Replica / Vault
- SSD read-only Cache / SSD read-write cache / SSD write-only cache / SSD profiling tool File Station (Web) / Object Storage
- External Device Management / Mount Smart Phone (MTP) / External RAID Device (QNAP so on) Management (External Device Mode) / External RAID Device (QNAP so on) Management (NAS Mode)
- File Server: File sharing across Windows, Mac, and Linux/UNIX / Microsoft networking (CIFS/SMB) / Apple networking (AFP) / NFS version 3/4 services
- FTP Server: QuFTP / FTP, SFTP and TFTP protocols / FTP over SSL/TLS (explicit FTPS) / FXP support
What's In the Box:
- x1 TS-262
- x1 Ethernet cable
- x1 Power cord
- x1 AC Adapter
- x6 Flat head screw (for 3.5" HDD)
- x6 Flat head screw (for 2.5" HDD)
- x1 Quick installation guide
