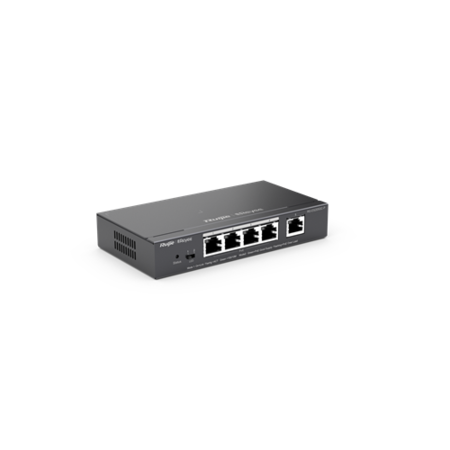

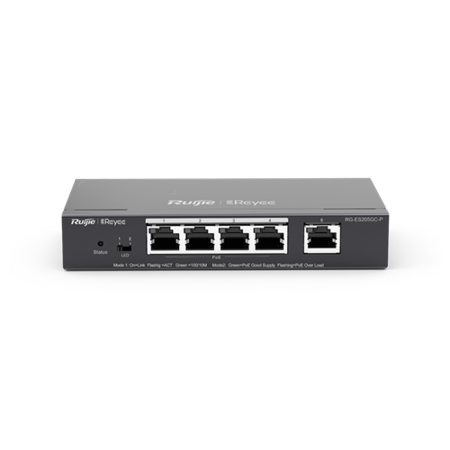

5-Port Gigabit PoE+ Smart Cloud Switch
The RG-ES205GC-P features five Gigabit Ethernet ports, including four PoE+ ports, designed for small business and CCTV deployments requiring both data and power over Ethernet.
Cloud-Managed for Remote Access
Supports lifetime cloud management via Ruijie Cloud and the Ruiyi App, allowing users to configure, monitor, and troubleshoot the switch from anywhere.
PoE+ Power Budget of 54W
Delivers up to 54 watts of total PoE+ power across four ports, compliant with IEEE 802.3af/at standards, ideal for powering IP cameras, VoIP phones, and wireless access points.
IP Camera Recognition
Automatically detects and optimizes connectivity for IP cameras and NVRs, simplifying surveillance network setup and improving reliability.
Automatic Loop Prevention
Built-in loop detection and prevention mechanisms ensure continuous service by avoiding broadcast storms and network disruptions.
Fanless and Compact Design
Operates silently with a fanless design and compact dimensions (148 × 78 × 26 mm), making it suitable for quiet and space-constrained environments.
Layer 2 Switching Features
Supports VLANs, DHCP client, port mirroring, and MAC address learning, providing essential Layer 2 functionality for secure and segmented networks.
High Performance and Reliability
Offers a switching capacity of 10 Gbps and a forwarding rate of 7.44 Mpps, with an MTBF exceeding 200,000 hours and a 3-year warranty for dependable long-term operation.
