Dual-Band Wi-Fi 6 Performance
The RG-RAP2266 supports Wi-Fi 6 (802.11ax) with dual-band operation, delivering up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz—totaling 2976 Mbps. With 2×2 MU-MIMO on both bands and support for OFDMA and beamforming, it ensures high-speed, low-latency performance for dense environments like hotels, offices, and classrooms.

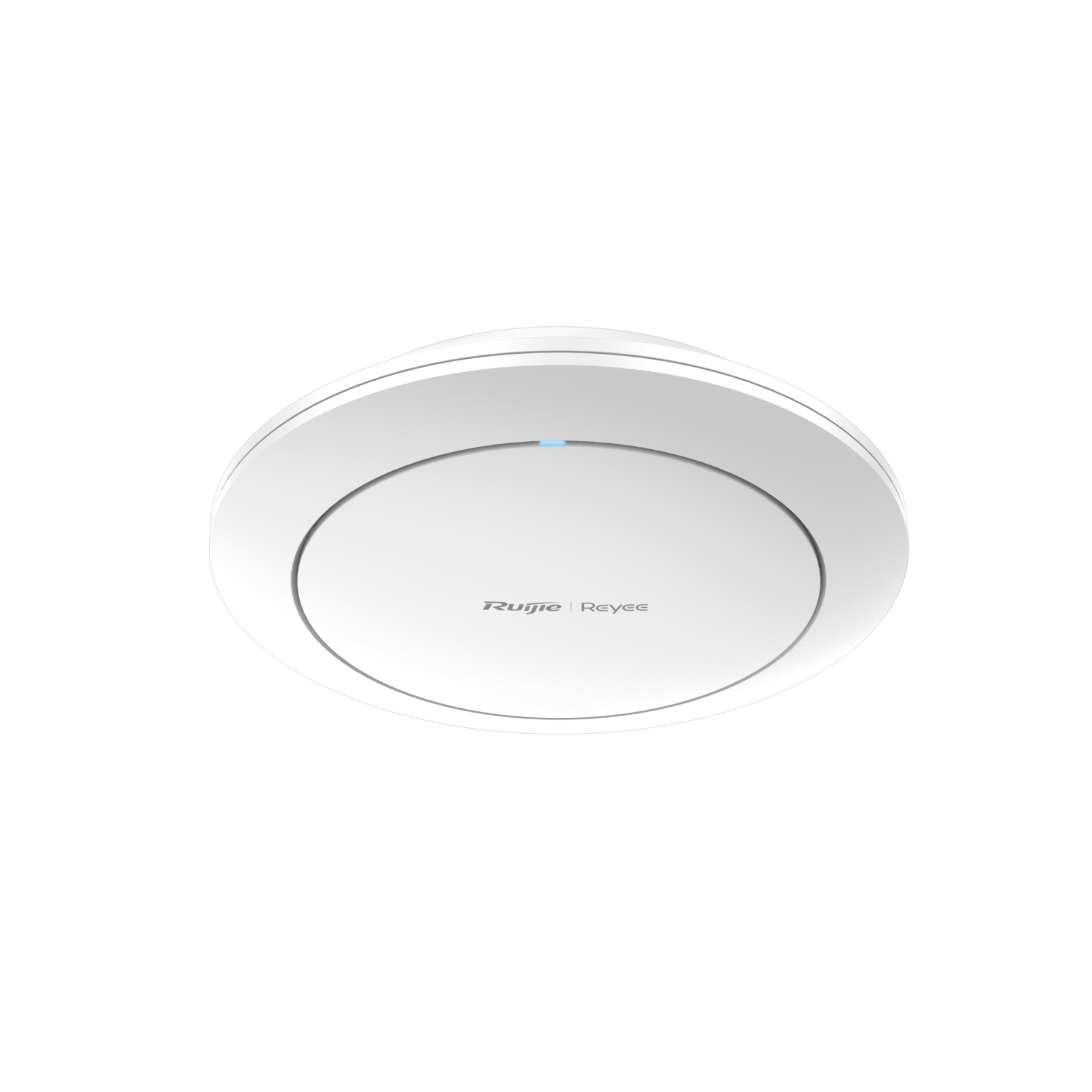

Elegant Ceiling-Mount Design

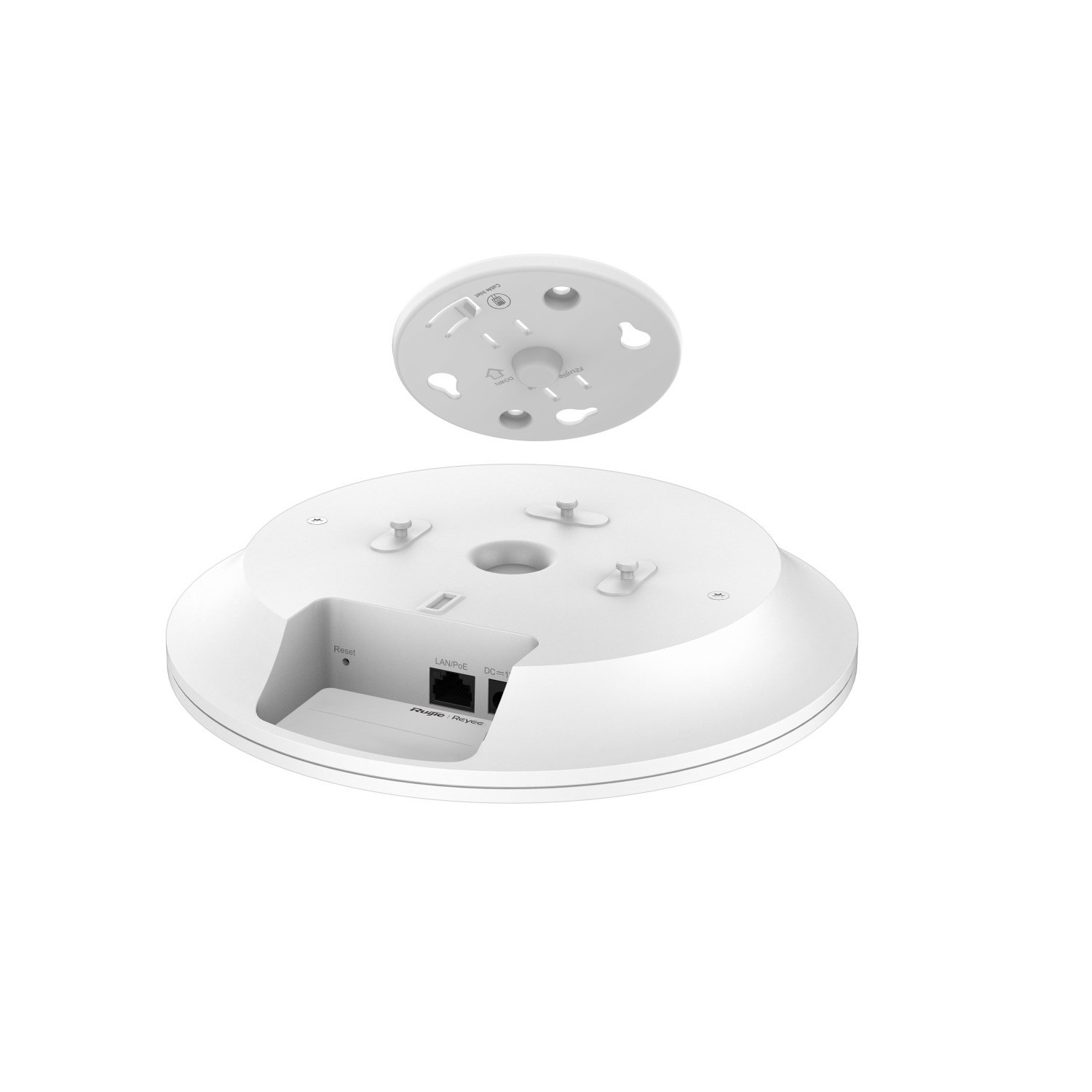

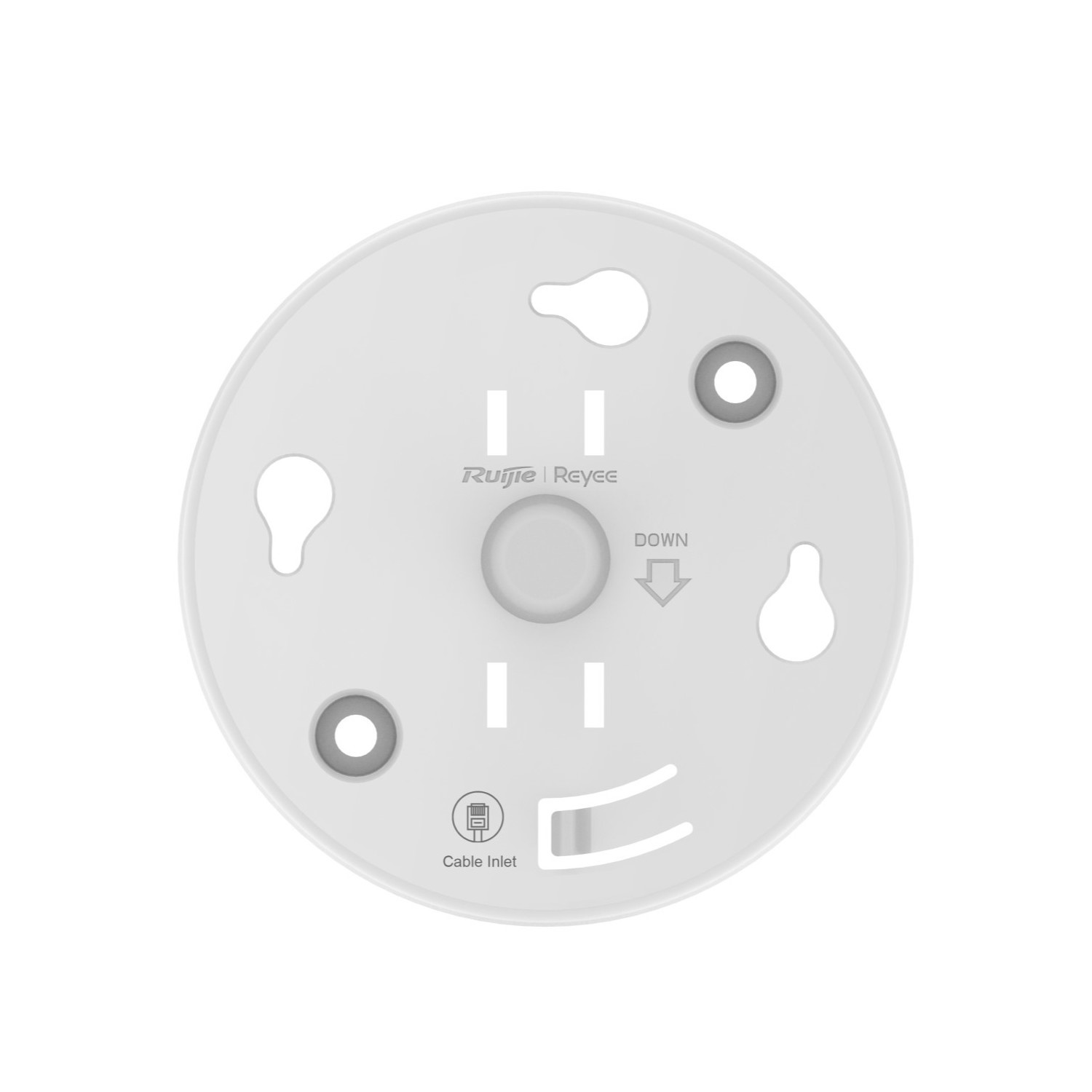

Featuring a sleek circular form factor, the RG-RAP2266 measures Ø220 mm × 52.6 mm and weighs under 0.55 kg. Its modern aesthetic is designed to blend into upscale interiors, especially in hospitality and commercial settings. Installation is quick and secure with a rotating mount system.
Gigabit Ethernet Port
The device includes a single 10/100/1000 Mbps Ethernet port for uplink, supporting full-speed backhaul for high-performance networking. While it doesn’t offer multi-gig or PoE passthrough, it’s optimized for streamlined deployments with minimal cabling.
PoE+ Powered Simplicity
Powered via IEEE 802.3at PoE, the RG-RAP2266 consumes ≤18W and eliminates the need for external power adapters. This simplifies ceiling installations and supports centralized power management through compatible switches.
AI-Driven Optimization
The RG-RAP2266 features WIO (Wi-Fi Intelligent Optimization) and AI Roaming based on 802.11k/v standards. It automatically adjusts channel and power settings, balances client loads, and removes low-RSSI clients to maintain optimal performance across the network.
Mesh and Roaming Support
Supports Reyee Mesh for wireless interconnection with other Reyee APs, enabling flexible expansion without additional cabling. Layer 2 and Layer 3 roaming ensure seamless transitions between APs for mobile users, minimizing latency and dropouts.
SSID and Client Management
Supports up to 8 SSIDs and handles up to 512 clients, with 110 recommended for optimal performance. Features include VLAN tagging, SSID hiding, STA limits, and Layer 2 isolation—ideal for guest networks and enterprise segmentation.
Enterprise-Grade Security
Security features include WPA/WPA2-PSK encryption, blacklist/whitelist control, and cloud portal authentication. It supports secure remote access and centralized policy enforcement via Ruijie Cloud, ensuring safe and segmented network access.
Environmental and Compliance Standards
Designed for indoor use, the RG-RAP2266 operates in temperatures from 0°C to 40°C and humidity up to 100% (non-condensing). It complies with CE and RoHS standards and includes a 3-year warranty. With an MTBF exceeding 250,000 hours, it’s built for long-term reliability.
